- 8 Individual Channels for any light spectrum required
- 24 LEDs per channel
- Complete control via remote network
- Current modulation
- DC or PWM voltage control – 1 Hz to well over 2kHz
- Scheduling of light recipes with stepless dimming
- Customizable LED channels at point of manufacture
- Passive thermal management
- Heavy duty aluminum heat sink with no extra failure points from moving parts
- Decoupled industrial power supply
- External supply will reduce chamber thermal load by approximately 10%
- Part Number: CUS350M-36/F
- Designed for aerospace-grade reliability
- low profile footprint
- IP66 rated. Protected against dust, high pressure water and heavy humidity

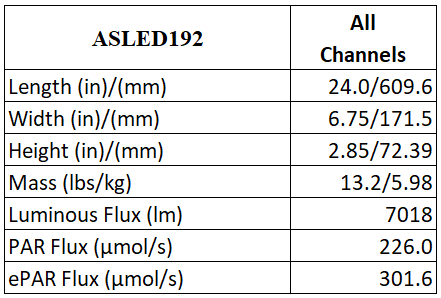

ASLED192

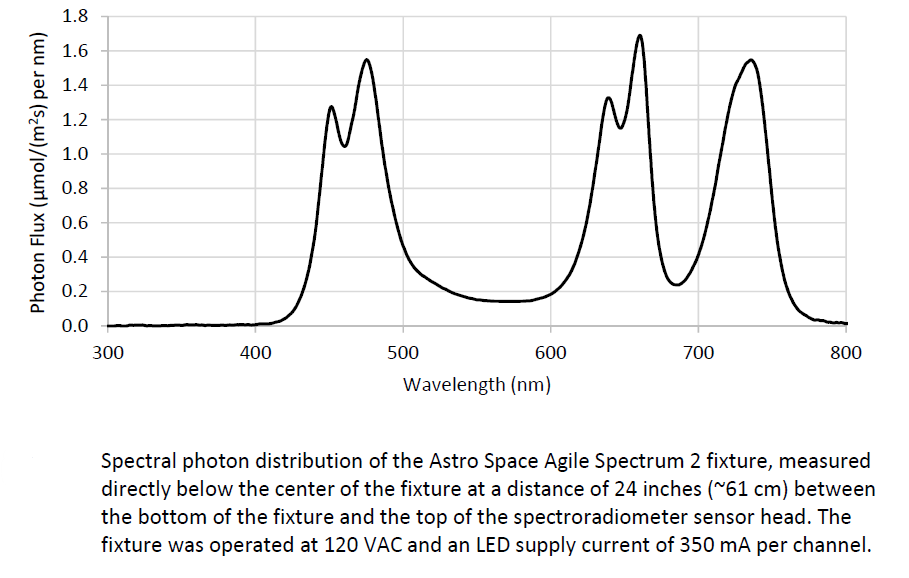

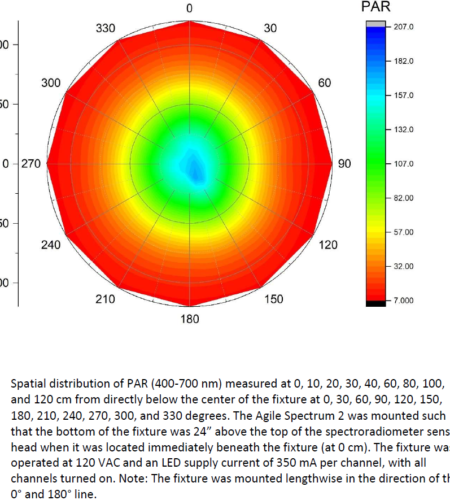

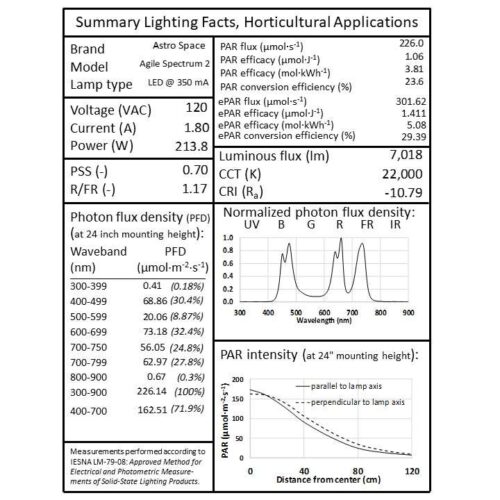

Proposed product label for the Astro Space Agile Spectrum 2 fixture (as tested at 120 VAC, 350 mA supply current to all channels and at a constant temperature) based on the layout proposed in: Both, A.J., B. Bugbee, C. Kubota, R.G. Lopez, C. Mitchell, E.S. Runkle, and C. Wallace. 2017. Proposed product label for electric lamps used in the plant sciences. HortTechnology 27(4):544‐549. 24 inches equals approximately 61 cm.
