ASLED80

  • 8 Individual Channels for any light spectrum required
    • 10 LEDs per channel
  •  Complete control via remote network
    • Current modulation
    • DC or PWM voltage control – 1 Hz to well over 2kHz
    • Scheduling of light recipes with stepless dimming
  • Customizable LED channels at point of manufacture
  • Passive thermal management
    • Heavy duty aluminum heat sink with no extra failure points from moving parts
  • Decoupled industrial power supply
    • External supply will reduce chamber thermal load by approximately 10%
  • Designed for aerospace-grade reliability
    • low profile footprint
    • IP66 rated. Protected against dust, high pressure water and heavy humidity
CF066103-scaled

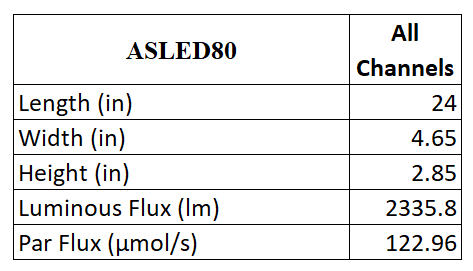

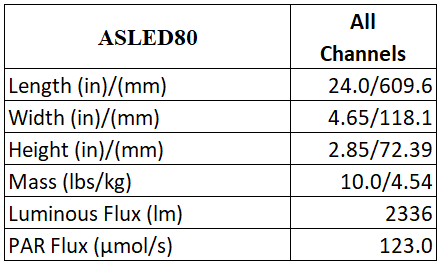

ASLED80 Info

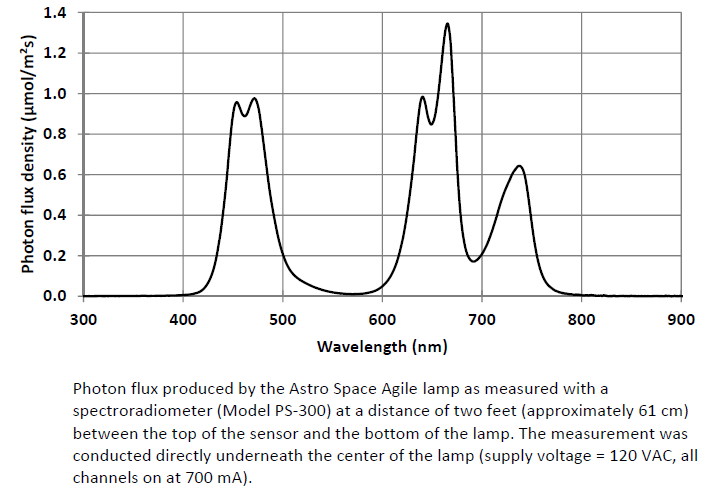

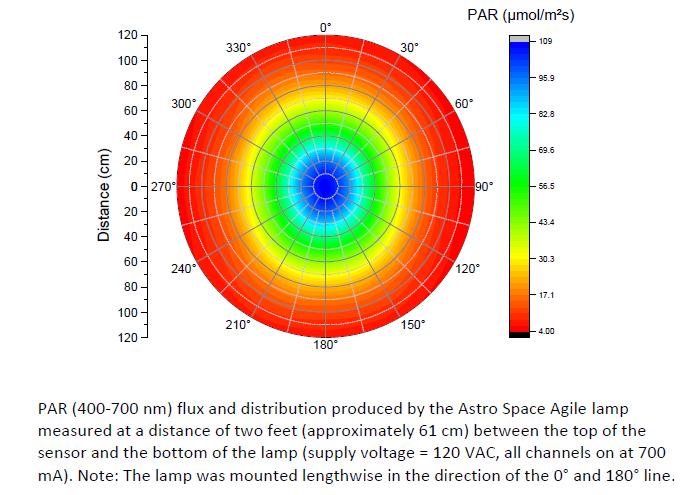

graph
